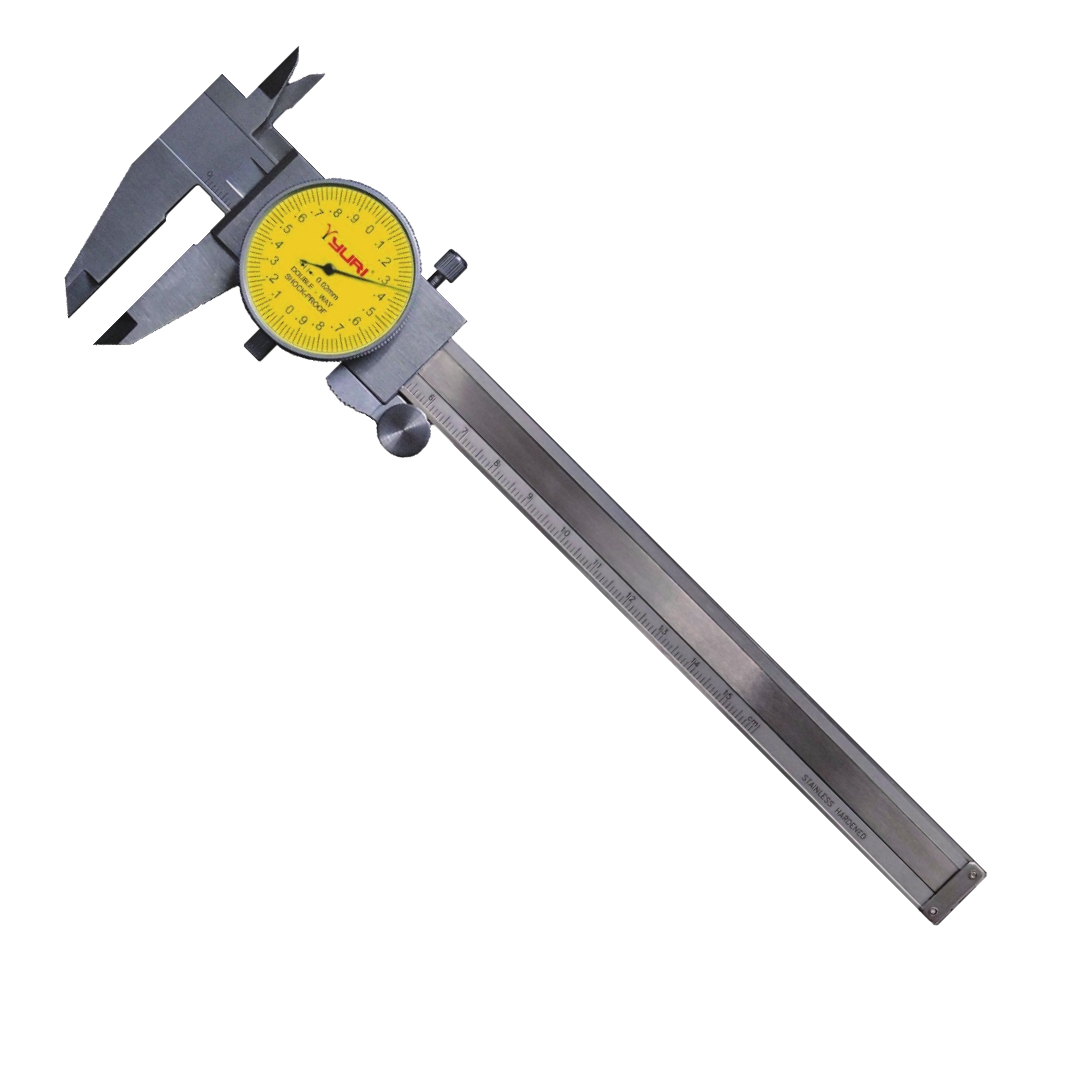

Yuri Dial Calipers
Yuri Dial Calipers
| Specifications: Inches | |||
|---|---|---|---|
| Order No. | Range | Dial Reading Graduation | Remarks |
| 431-111 | 0-6" | 0.001" | With Depth Bar |
| 431-121 | 0-8" | 0.001" | With Depth Bar |
| 431-131 | 0-12" | 0.001" | With Depth Bar |
| 431-141 | 0-24" | 0.001" | With Depth Bar |
| Specifications: Metric | |||
|---|---|---|---|
| Order No. | Range | Dial Reading Graduation | Remarks |
| 431-110 | 0-150mm | 0.02mm | With Depth Bar |
| 431-120 | 0-200mm | 0.02mm | With Depth Bar |
| 431-130 | 0-300mm | 0.02mm | With Depth Bar |
| 431-140 | 0-600mm | 0.02mm | With Depth Bar |
Features:
- The dial is coloured yellow to ensure excellent visibility of dial graduations
- Slider displacements are amplified using a rack & pinion mechanism and are indicated on the dial
- Measures Outer Diameter (OD), Inner Diameter (ID), Depth, and steps
- Shockproof movement enhances durability and accuracy
- Clamping screw located on top of the slider for secure positioning
- Zero setting is achieved through a swivelling dial and a locking screw
- Covered rack helps keep gears and wheels clean
- Made from stainless steel for increased durability and corrosion resistance
