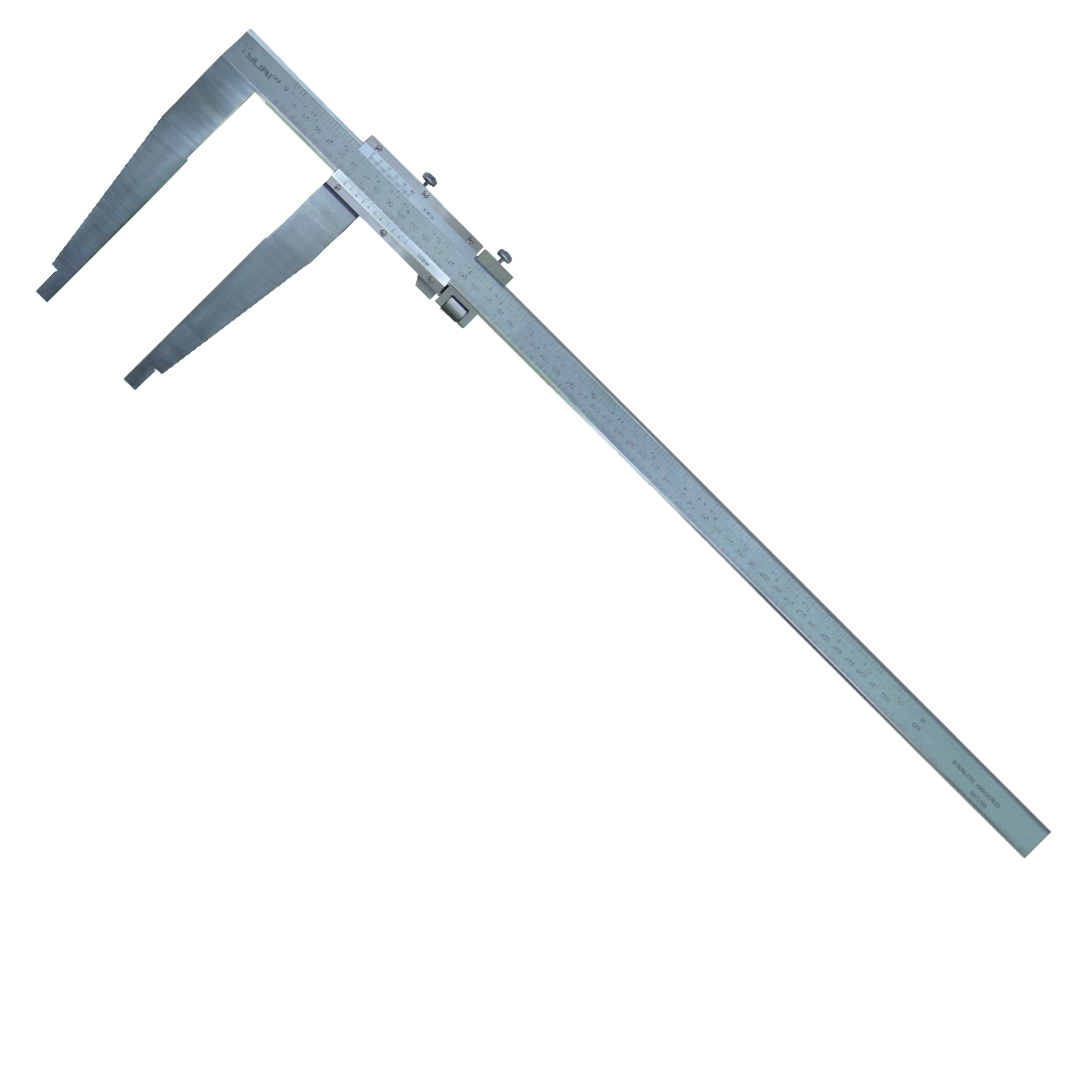

Yuri Heavy Duty Type Vernier Caliper

Yuri Heavy Duty Type Vernier Caliper

Specifications: Metric/Inch
Order No. Range–Lower Scale Range–Upper Scale Vernier Reading–Lower Scale Vernier Reading–Upper Scale Remarks
425-370 0–450mm 0–18" 0.02mm 0.001" No Depth Bar
425-380 0–600mm 0–24" 0.02mm 0.001" No Depth Bar
425-390 0–1,000mm 0–40" 0.02mm 0.001" No Depth Bar
425-400 0–1,500mm 0–60" 0.02mm 0.001" No Depth Bar
425-410 0–2,000mm 0–80" 0.02mm 0.001" No Depth Bar
425-420 0–3,000mm 0–120" 0.02mm 0.001" No Depth Bar



Features:

  • The vernier and main scale have a satin chrome finish, enabling glare-free reading
  • Raised sliding surfaces protect the scale from damage
  • Jaws for both internal and external measurements, featuring round measuring faces for accurate inner diameter (ID) measurements
  • Equipped with a fine adjustment carriage for precise and gradual movement of the slider
  • Made from stainless steel, ensuring durability and corrosion resistance
